Introduction
RSI Concepts provides organizations with state-of-the
art Queue Management Systems. RSI Queue Management System or
"RSI Queuing System" is a customer flow management system that allows you
to organize your customers in an efficient and effective way on the basis of smart

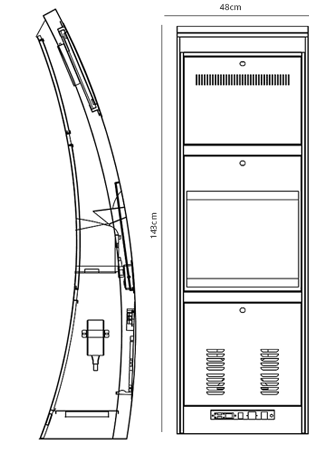

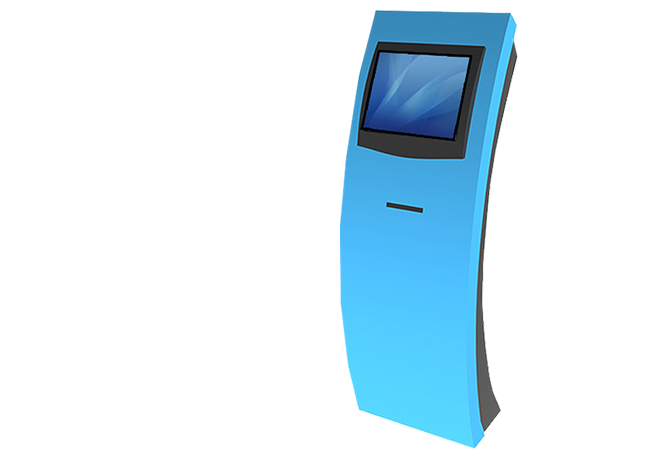

RSI 9001
RSI 9001 is a complete and sophisticated ticket dispensing unit that can support all the advanced functionalities of RSI Queue. It has the capability of integration with hardware platforms such as reading one and two dimensional barcodes, Magstrip, Contact Chip, RFID and Memory Cards. It also has the ability of integrating the system with ERP and MIS systems.
Specification
| Height | 143cm |
| Width | 143cm |
| Depth | 30cm |
| Weight | 50 kgs |
| Screen | Capacitive Touch 15/17/19 inch |
| Material | Mild Steel, Spray painted |
| Processor | Core 2 Duo/i3/i5/i7 |
| Memory | 1Gb & above |
| Storage | 80Gb & above |
| Network | WiFi/Ethernet/RS232 |
| Power Supply | 220-240V / Surge Protection |
| Other | Lockable Rear Doors |
Thermal Printing
Barcode
RFID / IC
Multi Language
Surge Protection
Secure
 |

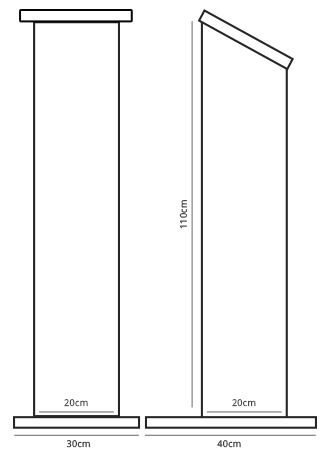

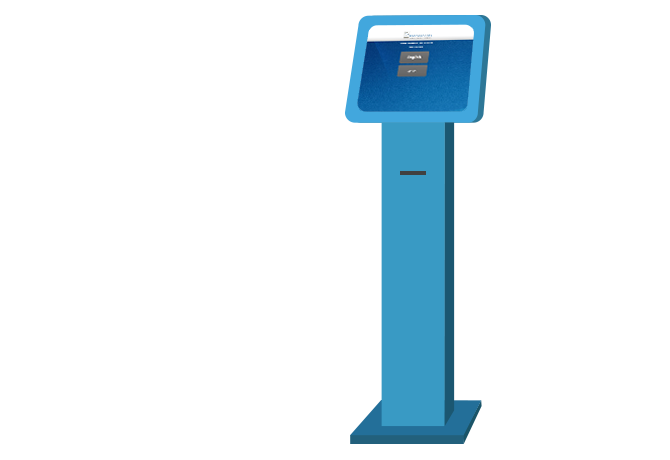

RSI 9002
It is a smart and sleek floor standing ticket dispensing queue machine suitable for cost effective implementations. It is made up of FR- MDF with spray paint or paper/vinyl digital printing. This model also has the leverage of having any number of services configured to dispense token.
specification
| Height | 110cm |
| Width | 20cm |
| Depth | 20cm |
| Weight | 15 kgs |
| Screen | Capacitive Touch 9/11 inches |
| Material | FR-MDF |
| Processor | Core 2 Duo/i3 |
| Memory | 1Gb & above |
| Storage | 200Gb & abov |
| Network | WiFi/Ethernet/USB |
| Power Supply | 220-240V / Battery Powered |
| Other | Lockable Rear Doors |
Thermal Printing
Sleek & Smart
Digital Signage
Multi Language
Built-in Camera
Secure
 |

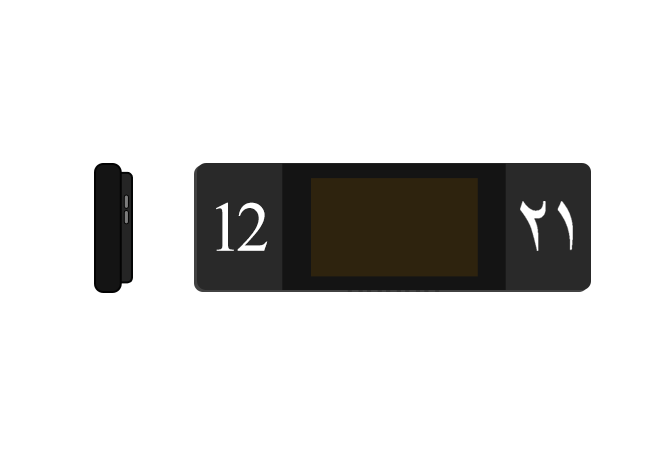

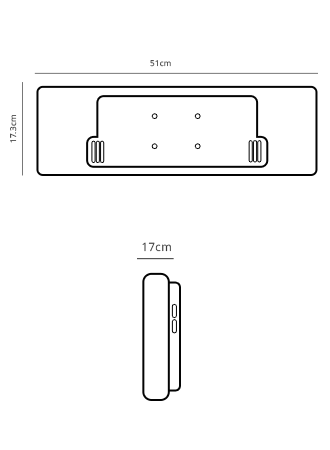

Counter Screen Slim Wifi/POE
This is the most advanced counter screen having LCD screen to showcase the ticket number. This counter screen is power independent of adapters as the screen can operate on POE. The unit has WiFi interface to avoid cabling challenges.
Specification
| Height | 17cm |
| Width | 51cm |
| Thickness | 3cm |
| Weight | 2 kgs |
| Color | Black |
| Screen | 10” inch |
| Connectivity | WiFi/Ethernet |
LCD
POE
WIFI
Ethernet
Slim & Sleek
Multi Language
 |

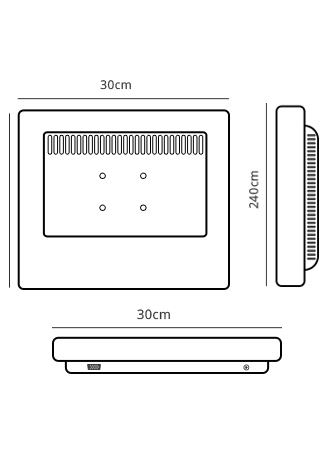

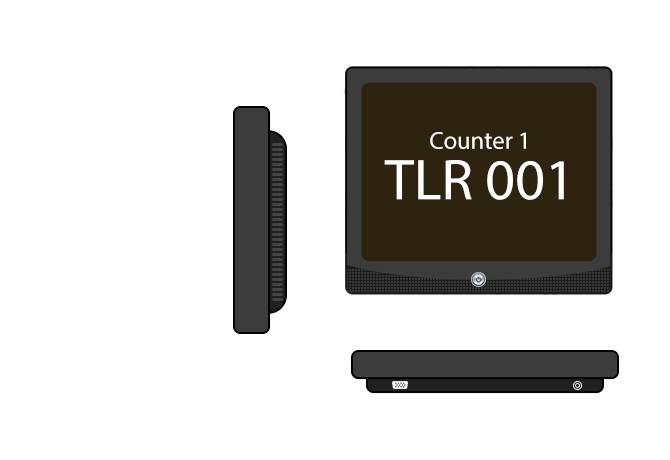

Counter Screen Square HDMI/VGA
This counter screen is a square shaped LCD screen working on individual power and to be connected over HDMI or VGA cable. It is a cost effective solution for the projects where Digital Signage is to be available on over the counter.
specification
| Height | 24cm |
| Width | 30cm |
| Thickness | 4.5cm |
| Weight | 2 kg |
| Color | Black |
| Screen | 12” inch |
| Connectivity | HDMI/VGA |
| Power | POE |
LCD
HDMI/VGA
Wired
Power
Multi Language
Digital Signage
 |

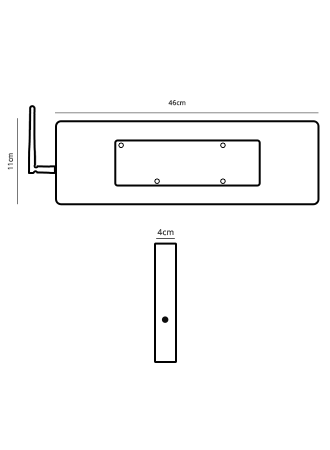

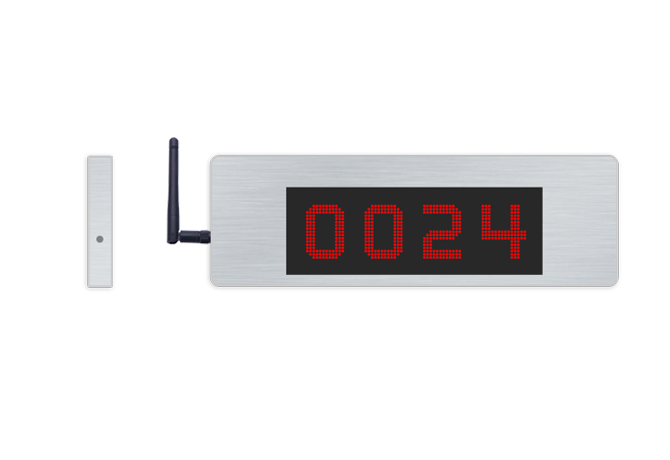

4 Digit Counter Screen RF
The conventional 4 Digit counter screen is all time favorite choice of our customers. The screen requires no cabling as it operates on Radio Frequency. It is the most cost effective and secure solution to be installed in any environment without any dependency of cabling or network availability.
Specification
| Height | 12.5cm |
| Width | 46cm |
| Thickness | 3.5cm |
| Weight | 2 kgs |
| LEDs | Red, Green, Yellow |
| Casing | Stainless Steel, Mild Steel |
| Connectivity | Radio Frequency |
Digital Screen
Radio Frequency
Wireless
Power
Multi Language
Digital Signage
 |

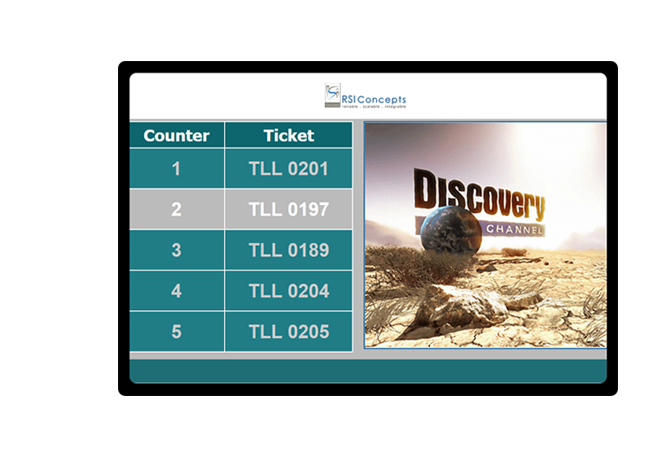

Routing Screen Large(LCD/LED) VGA/HDMI
It is important to ensure that the customer has the most entertaining time while waiting for their turn. It is also a good time for the businesses to educate the visitors about their products and services by drawing their attention to the marketing collateral. RSI Queue’s multimedia and digital signage component provides the state of art features to the users for presenting their marketing collateral in the most professional way.
| Height | 24cm | Width | 30cm |
| Thickness | 4.5cm | Weight | 2 kg |
| Color | Black | Screen | 12” inch |
| Connectivity | HDMI/VGA | Power | POE |

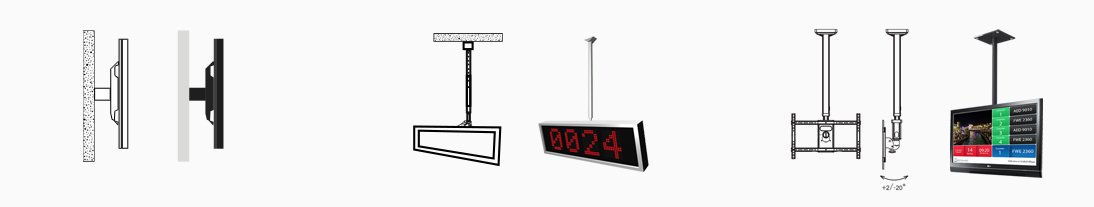

installation Options
Various Options
- Installation
- Layout
- Colors
- Types
Various Sizes
- LCD
- LED Sizes
- Bezzel
- Nits
Digital Signage
- Theme
- Layouts
- Animations
- Scheduling
TV Channels
- Satellite
- Youtube
- IP Tv
- Service Provider

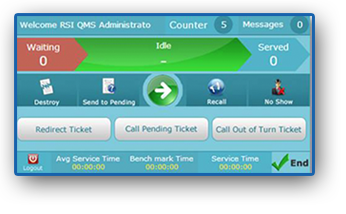

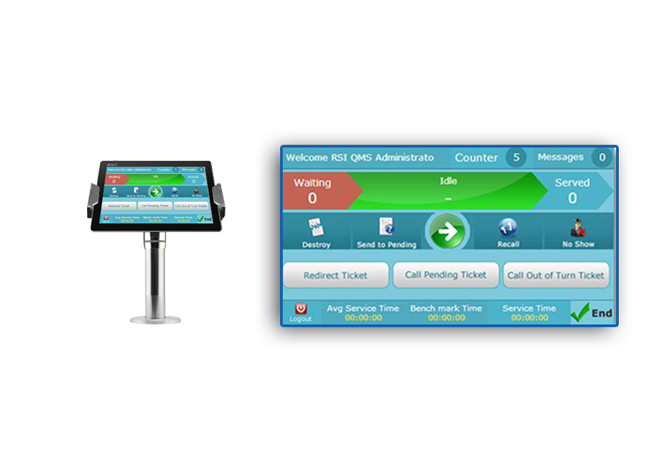

Agent Calling Unit
The conventional 4 Digit counter screen is all time favorite choice of our customers. The screen requires no cabling as it operates on Radio Frequency. It is the most cost effective and secure solution to be installed in any environment without any dependency of cabling or network availability.

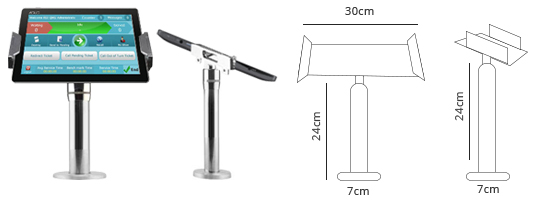

Touch screen based calling units are ideal for scenarios where the counter agents don’t have computer machines. These are smart and sleek table based touch screen units and perform similar operations of a soft calling unit.
Touch screen based calling units are ideal for scenarios where the counter agents don’t have computer machines. These are smart and sleek table based touch screen units and perform similar operations of a soft calling unit.
Ticket Info
- Current Ticket
- Tickets in Queue
- Served Tickets
Service Time
- Benchmark Time
- Serve Time
- Average Service Time
Ticket Options
- Call
- Recall
- Destroy
- Pending
- Transfer out of turn
- Tag
Design & Layout
- Standard
- Customized Integrated Floating
